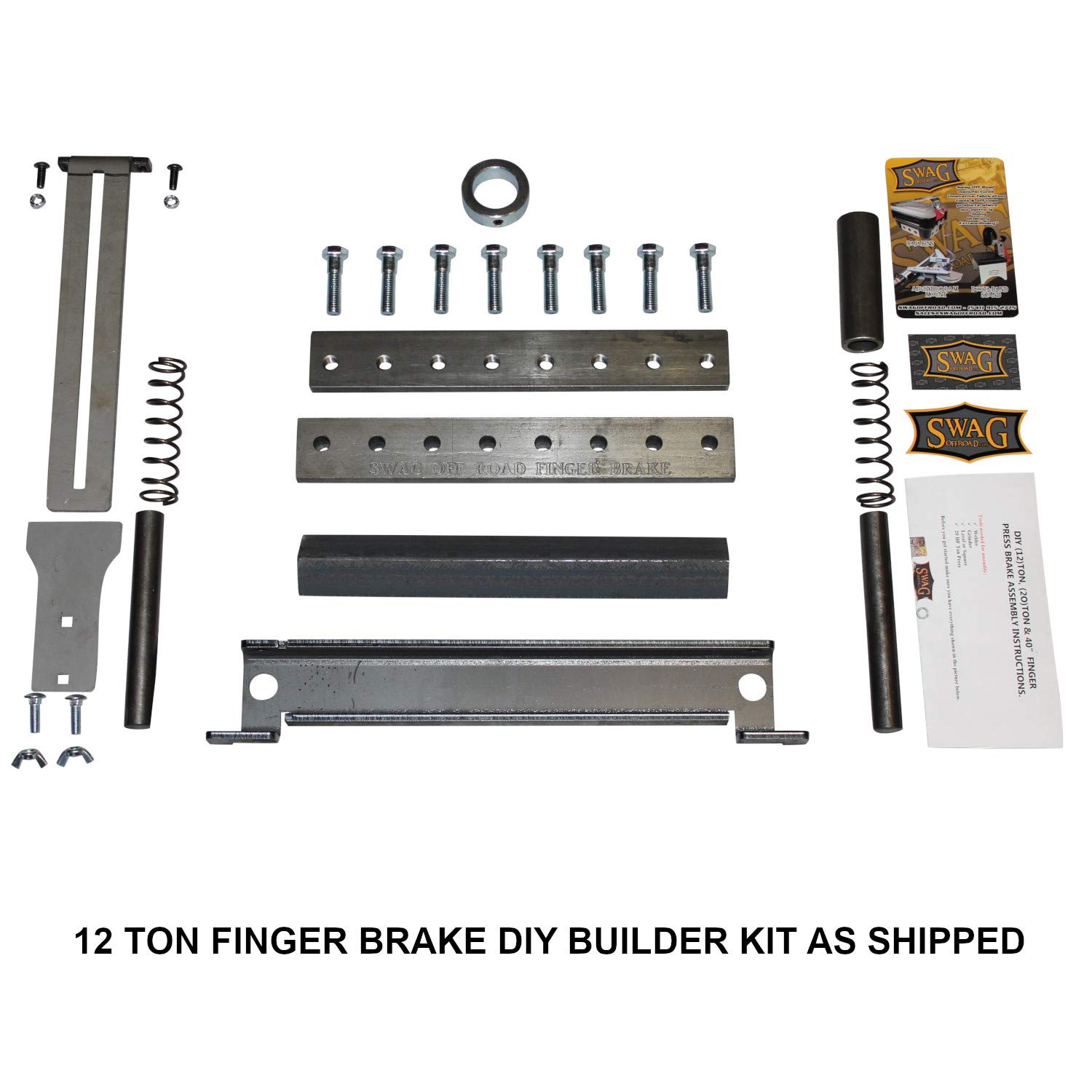

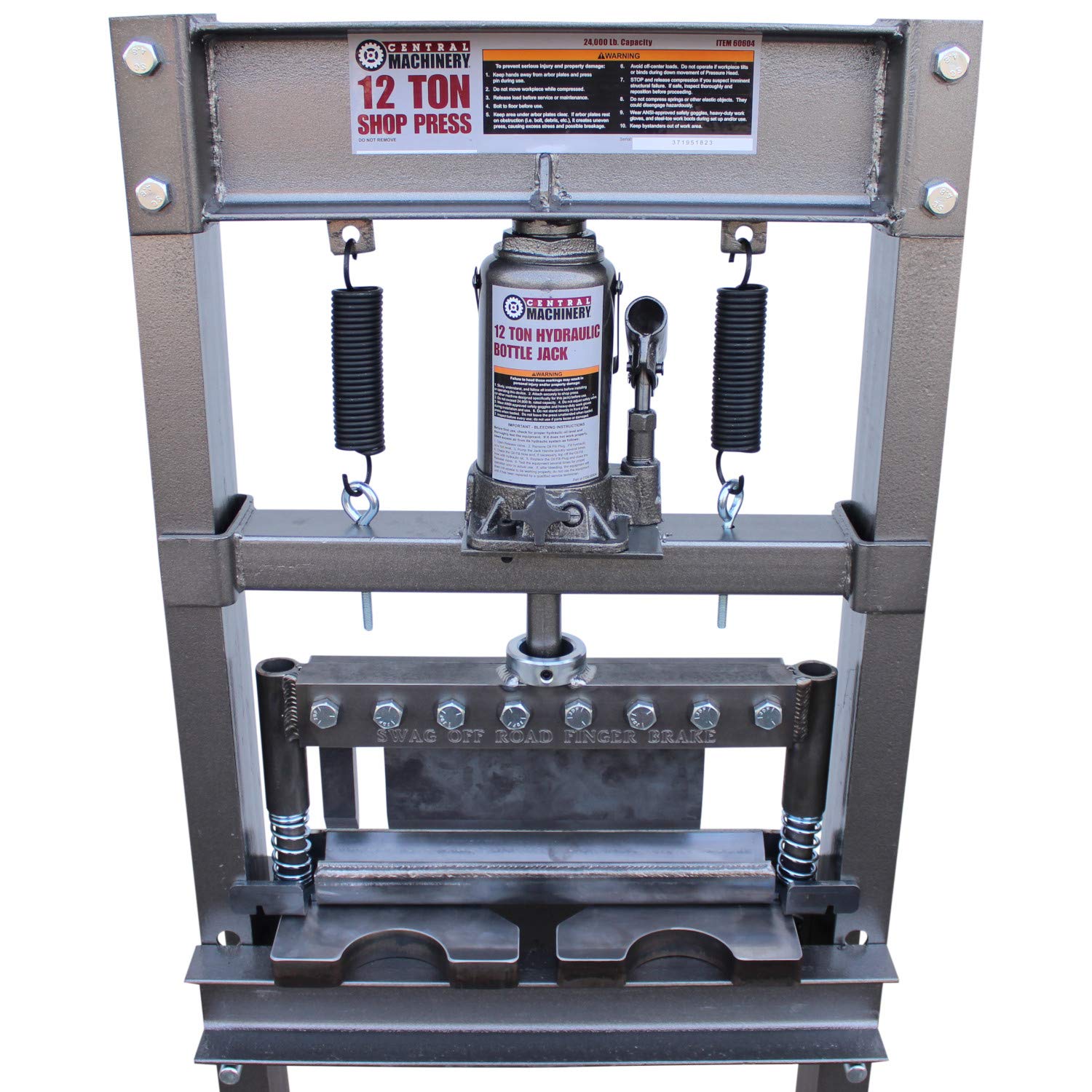

12 TON Finger Brake DIY Builder Kit Press Brake kit comes unassembled, you do the final assembly and welding. Designed to fit the Harbor Freight 12 ton hydraulic press Item # 33497 Press brake kit includes an adjustable back stop for accurate and repeatable bends. The top clamping bar is machined out of 4140 material and includes 3 segmented removable sections. 1", 3", and 9.5" long pieces. These segmented blocks can be removed and rearranged to allow bending of restricted areas on a piece of sheet metal or on an already partially formed pieces. Max Bending Radius (deg.) 110Max. Bending Capacity 3/8" plateMax Bending Width 13.50" Total width of the brake is 16.375" wide Tools required for assembly, welder, grinder, level, small square. It Is capable of bending mild steel in the following length and thickness. 13.50" = Full bending width of the bottom die on anything 1/8" or thinner.8" in 3/16"6" in 1/4"2.5" in 3/8" Please provide us a valid shipping address that USPS delivers too. Here at SWAG our Press Brakes are built for individuals looking for quality, 100% American made tools. Designed for those working with a limited budget and the need for custom metal fabrication. Product evolution and expansion has led us to Several different sizes and models of Brakes designed to meet a wide variety of needs. From our smallest, with a bending width of 13.50", to our Mammoth 50" Universal Finger Press Brake DIY Builder Kit with a total bending width of 49"! We strive to keep the needs of the everyday working man or Saturday shop hound at the forefront of our minds. SWAG Off Road InnovativeUniqueAuthenticEfficientIntegralHonorable We believe in our Motto "Doing Ordinary Extraordinary!" Since our inception, we have a long history of service. We believe in doing business the old fashioned way; we actually answer our Phone! Visit our website for more information! ___________________________________ Available Finger Brake Accessories: __________________________________ Finger Brake Gooseneck Dies Increase the bending capabilities of your SWAG Finger Press Brake kit! The SWAG Gooseneck dies are laser cut at 90° to allow for air bending. These punches are used for forming right angle bends, channels, or other special bends where our straight 90° punch would cause interference and limit your bending options.If you have used your press brake for any "special" projects you have ran into the limitations of the straight segmented fingers. These limitations become apparent when bending shallow pans or forming complex "U" bends. Check out our "Goosneck Dies" Finger Brake Hemming Dies Increase the bending capabilities of your SWAG Finger Press Brake kit! SWAG Hemming dies perform an operation in which the edges of the sheet metal are folded (or folded over) another part in order to achieve a tighter fit. This product includes precise laser cut pieces of 1/2" plate that can be stacked in a line or welded together to suite your application. The kit consists of 32 individual pieces that when fully assemble forms an 8" long Hemming die. Typical Hemming operations are used to connect parts together, to improve the appearance of the part and to reinforce edges. 12 Ton "FLAT TOP" Adjustable Bottom V Die This simple concept allows you to easily adjust the gap between the bottom V die, by loosening two 5/16" bolts and siding the 3/8" thick laser cut plates in or out. This will allow for tighter bends on thinner materials and or allow you to bend much shorter pieces of material than what is currently offered with the SWAG standard or heavy duty press brake kits. The bottom steel plate has 4 threaded 5/16" holes and is laser cut out of 5/8" thick steel which sits upon the bottom die of the SWAG 12 ton press brake kits. The "Flat Top" is a self contained unit and can be removed or slid into position with in a few seconds.
